Keene 4" Ultra mini dredges UPDATED FOR 2018:

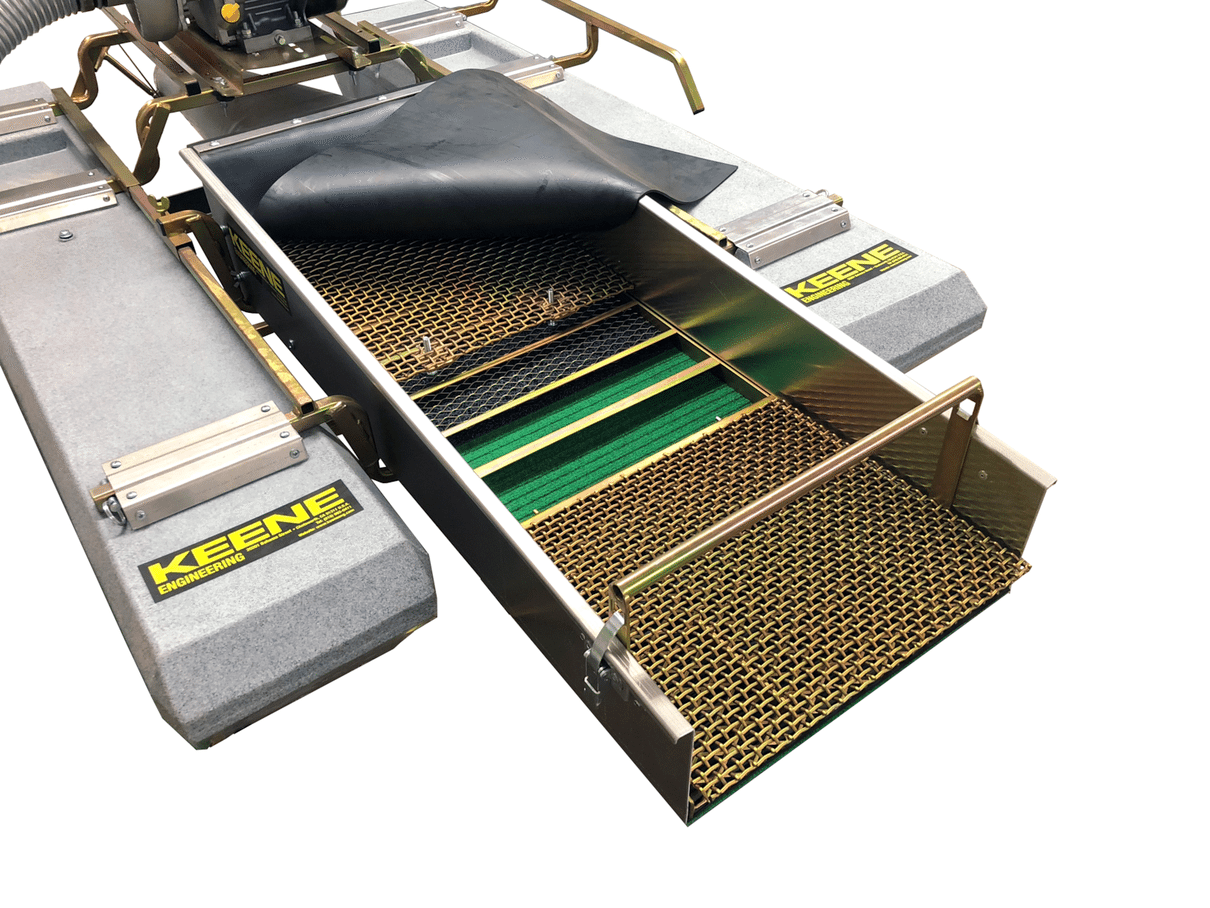

Keene's latest 4 inch Ultra Mini Dredges are equipped with their latest improvements including their "Slow Flow" sluice box. Keene has added a 1/4” woven wire classifier screen to the back end of the box that reduces water speed under the screen up to 50 percent. Also under the screen you will find medium expanded metal covering a portion of their famous Miracle Matting. Ultimately, this provides unsurpassed fine gold recovery all in a compact light sluice box.
This New 4” suction gold dredge is specifically designed to be lighter and more portable than Keene's standard model. The smaller, lighter, more compact 4” gold dredge is ideal for packing into remote areas and is also great for quick one day outings.
The sluice box has been shortened by 8” for a total of 40” in length. The new sluice is a single stage box, however with the woven wire classifier, the long rubber damper, miners moss, rubber ribbed matting and the latest riffle designs, you will not be disappointed in the fine gold recovery. The lighter sluice and flare weights around 30 lbs, making it easy to throw it over your shoulder and pack it in. The new float and frame on much smaller and lighter only 40 inches wide and 60” long and complete weighs less than 50 lbs. The dredge is just the right size to fit in between the wheel wells of a mini pickup or inside a small SUV.
The suction dredge comes with a standard engine such as the 6.5hp intek pro Briggs & Stratton or the 6.5 hp Honda, our P180 pump and the optional T80 air compressor and the air snorkel. The Dredge comes with 20 feet of suction hose and the oversized non-clogging power jet and jet flare. This is a lot of dredge in a little package.
4400P Keene 6.5 HP 4" Ultra Mini Dredge $3855 (FREE SHIPPING)
The dredge comes with a 6.5 horsepower intek pro Briggs & Stratton engine, our P180 pump, 20 feet of suction hose and the oversized non-clogging power jet and jet flare. Net weight 160 lbs.
4400PH GX200 Honda 4" Mini Ultra Dredge $3965 (FREE SHIPPING)
The dredge comes with a 6.5 horsepower Honda engine, our P180 pump, 20 feet of suction hose and the oversized non-clogging power jet and jet flare. Net weight 178 lbs.
4405P 6.5 HP 4" Ultra Mini Dredge w/ T80 Compressor $4485 (FREE SHIPPING)
The dredge comes with a 6.5 horsepower intek pro Briggs & Stratton engine, P180 pump, T80 air compressor and air snorkel. The Dredge comes with 20 feet of suction hose and the oversized non-clogging power jet and jet flare.
4405PH GX200 Honda 4" Ultra Mini Dredge w/ T80 Compressor $4595 (FREE SHIPPING)
The dredge comes with a GX200 (APPROX 6.5 horsepower) Honda engine, P180 pump, T80 air compressor and air snorkel. The Dredge comes with 20 feet of suction hose and the over-sized non-clogging power jet and jet flare.
4405pKAC BRIGGS STRATTON 4" ULTRA MINI DREDGE WITH KAC COMPRESSOR $4595 FREE SHIPPING
Shipping: Please note: FREE FREIGHT is available only within the lower 48 US States.
Delivery info: This gold dredge is in very high demand and subject to unannounced back-order. Lead times during peak season of 2-4 weeks are common. If you require delivery by a certain date you are required to inform us at time of order. These units are only made upon order and are considered special order items. We are charged in advance by the mfg. for these items. As such, you will be charged in advance as well to secure your place in line for shipment. There will be no cancellations of orders due to delivery time issues unless you inform us in writing of a need by date in advance. Please plan your purchase accordingly and allow extra time for delivery.
FOR CURRENT PRICING AND AVAILABILITY ON KEENE GOLD DREDGES
PLEASE CONTACT US AT: 1-888-985-6463.
|Low Pressure Diving Air SystemThe Low Pressure Diving Air System is available in various hose lengths. Please choose your preferred hose length from the drop down menu above.|
Shipping Weight: 17.00 pounds (for 20 foot hose model)
The LP120 Kit comes complete with the following items:
Low Pressure Reserve Tank - RT1 20 feet of air hose - AH20 One Regulator - R1 One Harness - H2 All necessary fittings including Quick Release connectors.
For use with Model T80 Compressor only (not included) .
Before ordering make sure your compressor can handle the depth. We recommend the lp120 (20 foot) model for most dredging applications. Diving to depths greater than this requires extra diving knowledge and more safety precautions. Never operate a dredge or dive alone!
This is a special order item, subject to frequent back order - please allow extra time to order and deliver.
|Sluice Dredge Bucket Recovery System|
Sluice / Dredge Bucket Recovery System
This handy little system allows you to save time and values when cleaning up your sluice! Easily adapts to any dredge from 2 to 4 inches in size, all sluices up to 16 inches wide and all Keene power sluice / highbanker models.
Simply fasten to the end of your sluice with the adapter bracket and you are ready to go!
System comes complete with a detachable 2 gallon handled bucket and 3/8" classifying sieve. Net weight is about 7 pounds.
