Keene Spiral Wheel 25" Professional Model  (SOLD OUT)
Keene Spiral Wheel 25" Professional Model  (SOLD OUT)Keene Spiral Wheel 25" Professional Model  (SOLD OUT)
Keene Spiral Wheel 25" Professional Model (SOLD OUT)
Item #:kegw25
Regular price:$545.00
Availability:Contact us for availability
Product Description:

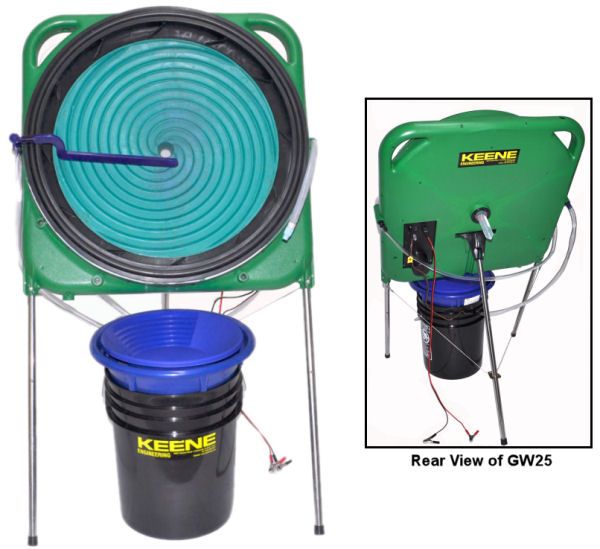

Keene Engineering's NEW GW25 Professional 25 inch gold spiral wheel produces unparalleled performance in both speed and fine gold recovery. Recover ultra fine gold better than anything you have ever seen before. This amazing gold recovery is due to its soft rubber spiral riffles that have negative angle undercuts and sharp edges.

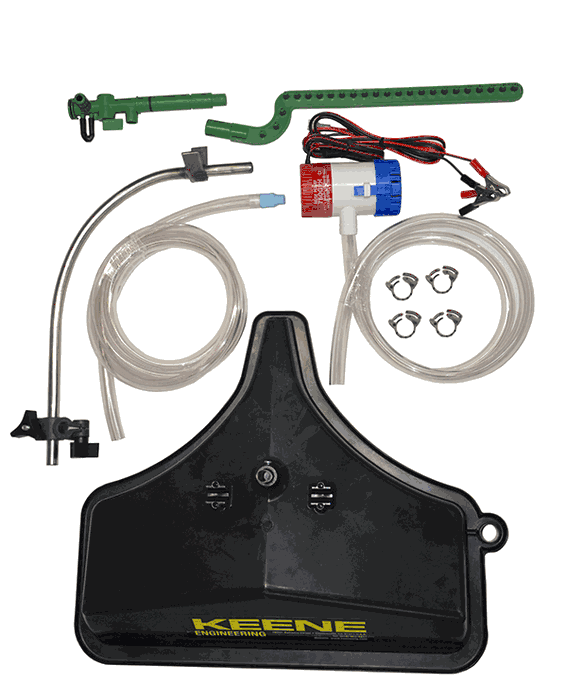

NEW: AUTOMATIC FEEDER now included (see below).

Experience precise and smooth speed control with its long life replaceable geared bearings spiral wheel. Bowl is mounted with replaceable center bushing with 12 radial roller bearings mounted on the edge for accurate bowl loading.

Spiral Wheel Features:
electrical back panel with speed control,
plug in battery, pump terminals and on/off switch.
metered gold tube
metered water jets

Another unique feature of Keene's GW25 spiral wheel is the metered gold tube that easily screws into the back of the wheel to remove gold and a black sand collection funnel to collect a first run of concentrates. Machine also has attachable cup for first run recovery that collects both gold and black sand and transports it down a tube to collect large amount of Black sand and Gold for final extraction run.

The water flow tube has metered water jets for precise flow. Set up by inserting three stainless steel legs and connect a 12v battery and you are ready to witness the most advanced recovery spiral system on the market today.

Includes 1100 gallon per hour 12 volt pump, wash down hose and nozzle, filter sieve and a solid recovery pan. Capacity up to 400 lbs. per hour.

Recovery is easily facilitated by accurate speed control and a adjustable water system with 26 jets that can be metered precisely for best mix and control of the heavies you are collecting.

Two Water Jets are placed on the outer rim to speed gold into the Riffle system and rapidly wet the material entering the bowl along with a separately mounted wash down hose. Mounting legs are Stainless Steel for rust prevention and the unit can be plugged into any 12 volt DC battery.

NOTE: 5 gallon bucket & battery are not included due to costly shipping fees. This item is subject to unannounced back order - please order early.

Net Weighs about 25 lbs + about 5 pounds for the feeder.

GW25 Spiral Wheel Delivery info: This unit is in very high demand and subject to unannounced back-order. Delays of 2-4 weeks are common. If you require delivery by a certain date you are required to inform us at time of order. These units are only made upon order and are considered special order items. We are charged in advance by the mfg. for these items. As such, you will be charged in advance as well to secure your place in line for shipment. There will be no cancellations of orders due to delivery time issues unless you inform us in writing of a need by date in advance. Please plan your purchase accordingly and allow extra time for delivery.
