Product Description:

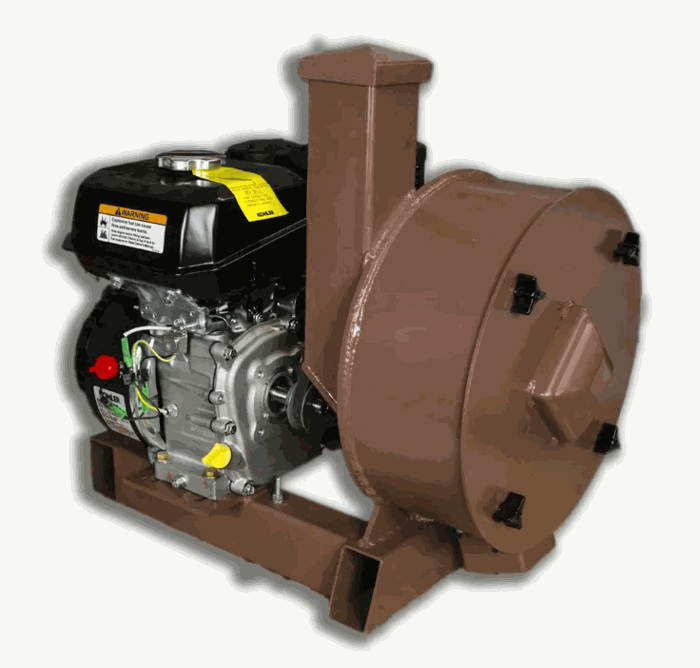

K & M Krusher - Rock/Ore Crusher 7HP Kohler Gas Motor 14" Drum 3" Infeed-Rockwell #58 Hammers

This unit is Built to last...Heavy duty construction

Turns rock into a talcum power like dust 100-200 Mesh 500-1000 Lbs per hour ready to process and get your GOLD

Rock Crusher from K&M Krushers. These crushers are the next generation of crushers. All of the critical parts are cut out with a CNC Laser cutter to insure everything is square and precise. The bolts & nuts that hold the hammers and mount your motors are schedule # 8 alloy.

Your new K&M Krusher features a 14" Drum 3/8" Thick with a 3" Infeed Tube. The Hammers are a Rockwell Hardness of 62 on the outside and #58 on the inside turning your 2-3/4" rocks into 100-200 mesh talcum powder. Easy 3 wing knobs for front plate removal. (Always look for gold in the back/bottom corner of the drum) The screen in the bottom of the drum is now fitted with a new easy replacement system.

The screen is stainless with more holes per inch than any other crusher allowing more thru-put. The Gas Motor is a Kohler 7 Hp Motor that is backed with a 3 Year Commercial Warranty.

This motor features a 4 stage air-filter and 3 fuel filters. Its a 4 stroke motor and designed for hard work. This crusher will come in 2 shipments, 1 is the Motor & the other is the crusher & all the parts to mount the motor.

******The Gas Motor is a Kohler 7 Hp Motor that is backed with a 3 Year Commercial Warranty. This motor features a 4 stage air-filter and 3 fuel filters. Its a 4 stroke motor and designed for hard work. Kohler Model #CH270 ******

Motor Details:

This gasoline engine features a 4-cycle, slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean™ 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this engine is backed by a 3 year commercial warranty.

features:
User-Friendly Maintenance.
Interference free PTO face
Dual oil fills and drains
No tools required all season air cleaner
Easy access throttle, choke and shutoff
Oil Sentry™ automatic low oil engine shutdown system
Carburetor bowl drain
High Power Performance.
Overhead valve design
Increased displacements
High-inertia flywheel
Extended Run Times.
Large metal fuel tank and chrome plated cap
Swirl induction combustion chamber
Quiet, Smooth Operation.
Oversized muffler with heat shield
Mechanical governor
Sound-deadening alloy crankcase
Silenced air intake
Easy Dependable Starts.
Electronic ignition system
Automatic compression release
Dual ball bearings
Indexable, easy pull recoil starter
Reliability and Long Life Design.
Quad-Clean™ heavy-duty cyclonic air cleaner
Warm air intake system for cold weather operation
Cast iron cylinder bore
Steel-forged crankshaft
Stellite-faced exhaust valve
Water trap to separate moisture in fuel
3 fuel filters: fill neck, in tank, and carburetor inlet
3 year commercial warranty

Note: a freight quote prior to ordering is required for this rock crusher
