Rock/Ore Crusher 11" Drum  ELECTRIC (NO MOTOR)
Rock/Ore Crusher 11" Drum  ELECTRIC (NO MOTOR)Rock/Ore Crusher 11" Drum  ELECTRIC (NO MOTOR)Rock/Ore Crusher 11" Drum  ELECTRIC (NO MOTOR)Rock/Ore Crusher 11" Drum  ELECTRIC (NO MOTOR)
Rock/Ore Crusher 11" Drum ELECTRIC (NO MOTOR)
Item #:KM11ENM
Regular price:$1,250.00
Availability:Usually ships in 5-7 business days
Qty.
Product Description:

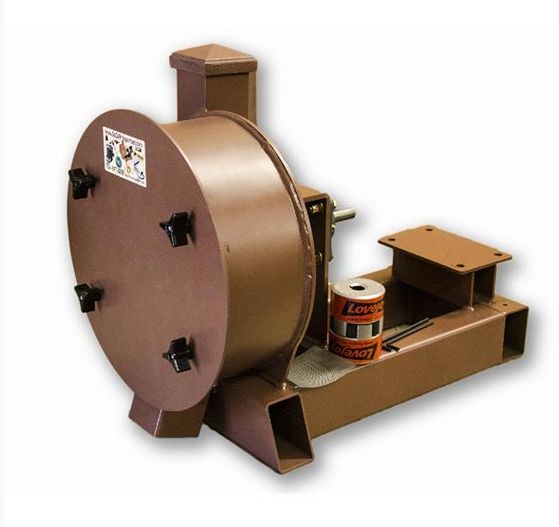

K & M Krusher - Rock/Ore Crusher 11" Drum 2-1/2" Infeed-Rockwell #58 Hammers Electric/No Motor This new Rock Crusher is from K&M Krushers.

Built to last featuring heavy duty construction. Turns rock into a talcum powder like dust 100-200 Mesh and 100-500 Lbs per hour, it's ready to process and get your GOLD!

These crushers are the next generation of crushers. All of the critical parts are cut out with a CNC Laser cutter to insure everything is square and precise. The bolts & nuts that hold the hammers and mount your motors are schedule # 8 alloy.

Your new K&M Krusher features a 11" Drum with a 2-1/2" Infeed Tube. The Hammers are a Rockwell Hardness of 62 on the outside and #58 on the inside turning your 2-1/4" rocks into 100-200 mesh talcum powder. Easy 3 wing knobs for front plate removal.

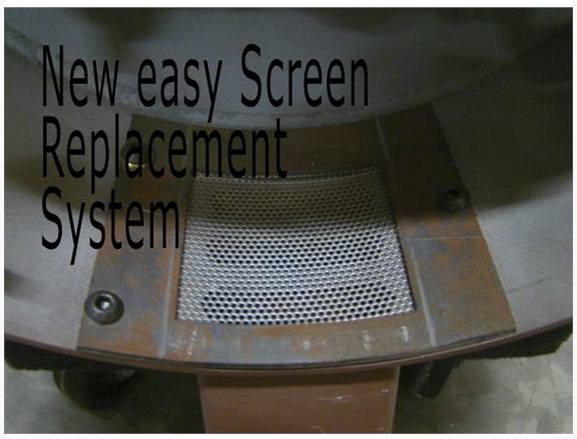

The screen in the bottom of the drum is now fitted with a new easy replacement system. The screen is stainless with more holes per inch than any other crusher allowing more thru-put. This unit has no motor included, it is however set up for to put your own motor right on it. Your motor needs to have a #56 Frame with a 5/8" shaft. The full LoveJoy connecting hardware is included (At times the connectors are all black as shown in the last photo) along with #8 Alloy motor mounting Bolts & Locking nuts.

SKU = K&M-11-ENM Shipping weight = 65 Lbs Shipping Size = 20" X 32" X 18" Tall
